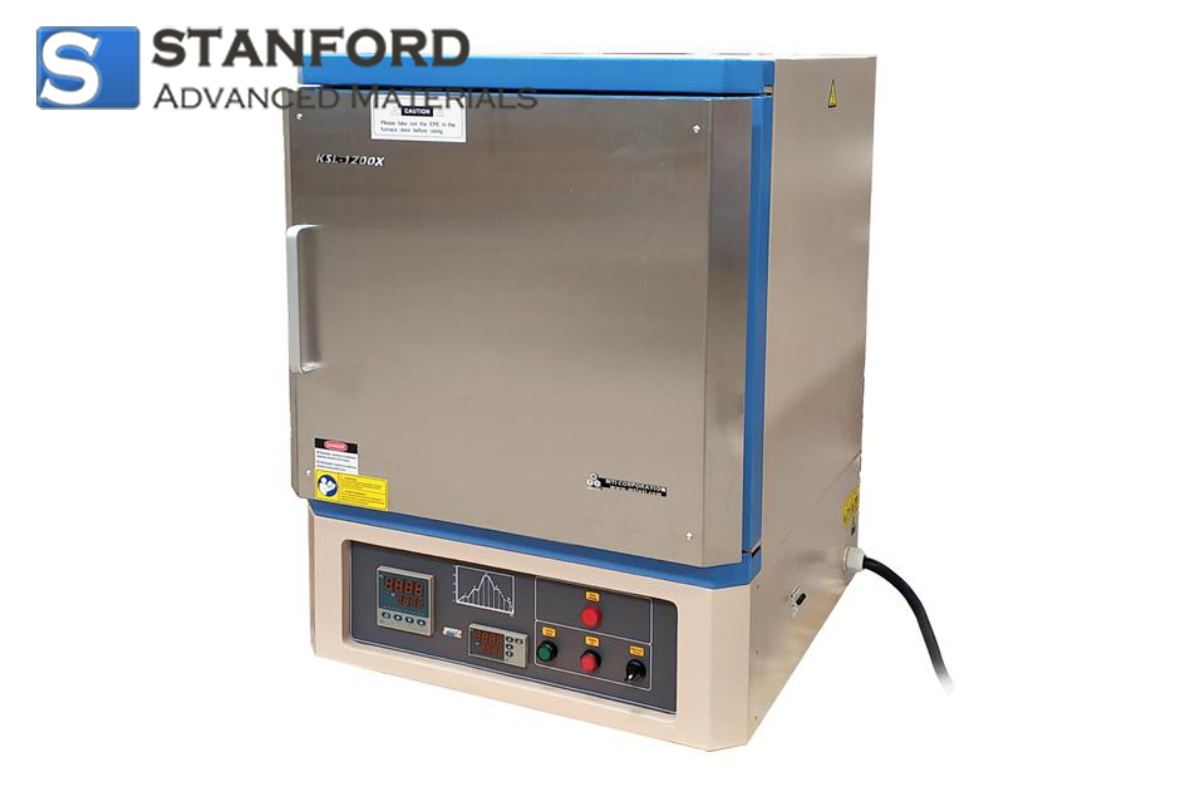

1200C 5-Side Heating Muffle Furnace KSL-1200X-5L-UL Description
1200C 5-Side Heating Muffle Furnace is a five-sided heating box furnace. Because the five sides of the furnace chamber are installed with heating elements, the temperature field uniformity is better. This type of box furnace was originally designed to anneal alloys and other metal materials with high-temperature field uniformity requirements. The silicon carbide plate is installed at the bottom of the cavity and can bear the weight of the sample up to 100kg.
1200C Max. 5-side Heating Muffle Furnace KSL-1200X-MAX Specifications
|
Power
|
- Power: 12 kW
- three-phase, AC380V/50Hz
- Other voltage ratings are available upon request.
- A power cord with a plug is included.
|
|
Heating Chamber
|
- Size: 20" x 20" x 20" (500 x 500 x 500 mm)
- Capacity: 125 liters
- Uniform temperature zone: 200 x 200 x 200mm +/- 2℃
- Heating element: Freestanding Ni-Cr-Al wire
- Thermocouple: K type
- Double-sided alloy casing with cooling fans.
|
|
Working Temperature
|
- 1200 ℃ continuously without an alloy chamber
- 1000℃ continuously with an alloy chamber
- Heating rate: 10℃/min
- Stability: ±1℃
|
|
Temperature Controller
|
- The FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling, and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1℃ temperature control accuracy
- Default RS485 PC communication port
- Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost
|
|
Refractory Alloy Chamber for Debinding (Optional)
|
- 310SS alloy chamber with a hinged door
- Size: 415 D × 372 L × 372 W (mm)
- Capacity: 57.4 Liter
- 12.7 mm OD gas inlet tube is at the back of the furnace
- 30 mm ID (40 mm OD) gas outlet tube is connected to the top of the furnace
- K-type thermal couple is inserted into the inside chamber for temperature control
- Max. working Temperature: 1000℃
- Alumina fiber packing is installed as the door sealant.
|
|
Product Dimensions
|
930×890×1480 mm (L×W×H)
|
|
Net Weight
|
330 Kg
|
|
Warranty
|
- One-year limited warranty with lifetime support.
- ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of SAM One Year Limited Warranty.
|
|
Compliance
|
- CE Certified
- NRTL (UL61010) or CSA certification is available upon request at an extra cost.
|
1200C 5-Side Heating Muffle Furnace KSL-1200X-5L-UL Applications
1200C 5-Side Heating Muffle Furnace is designed for annealing super-alloy and precious metal with a more uniform temperature zone and a SiC sheet is installed on the bottom of the chamber which can load heavy samples up to 100 kg.
1200C 5-Side Heating Muffle Furnace KSL-1200X-5L-UL Packaging
Our 1200C 5-Side Heating Muffle Furnace KSL-1200X-5L-UL is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
