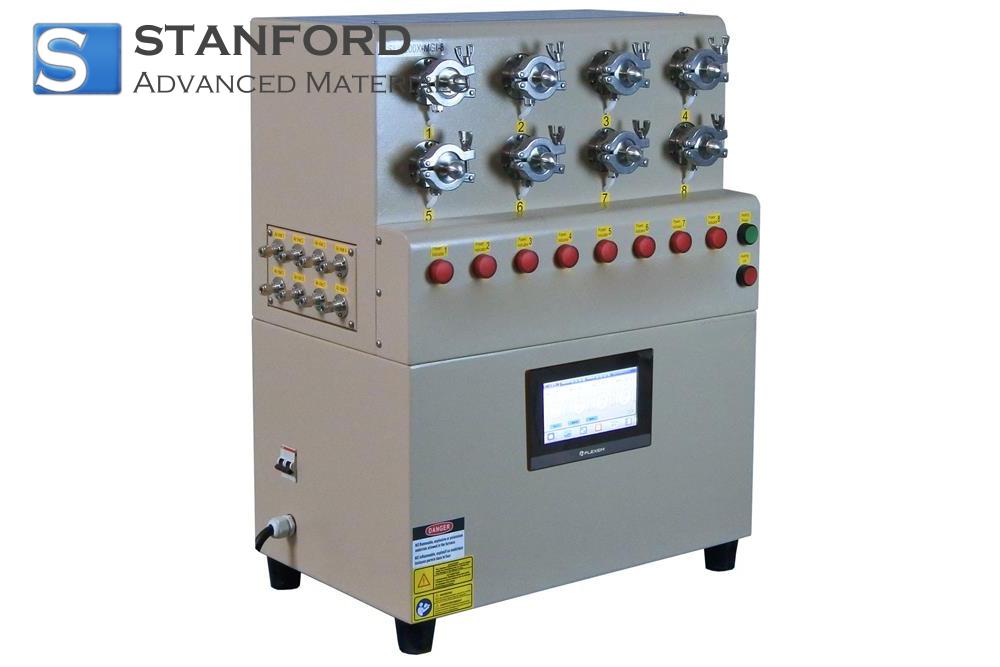

1200C 8 Channel Tube Furnace GSL-1200X-MGI-8 Description
1200C 8 Channel Tube Furnace GSL-1200X-MGI-8 is a compact 8-channel tube furnace with 20mm O.D. and sealing flange for high throughput heat treatment research of alloy and ceramic material up to 1200°C. It is an excellent tool to research phase diagrams in MGI new generation material.
1200C 8 Channel Tube Furnace GSL-1200X-MGI-8 Specifications
|
Furnace Structure
|
- The furnace consists of 8 small tube furnace modules with quartz tube 20mm O.D. x 17mm I.D. x 192mm L
- Each heating module is separated by insulation material with air cooling layer
- Each heating module's temperature is controlled independently up to 1200°C
- Quick seal flange, vacuum gauge, and flow meter are installed to allow heat treatment under vacuum or flowing gas
- Processing 8 samples with different temperatures at compact space
- The furnace system consists of two units: a furnace and a transformer box
|
|
Heating Element
|
NiCrAl alloy wire
|
|
Power
|
2.5KW, 208-240VAC, Single Phase, 50/60Hz
|
|
Working Temp.
|
- Max. Temp: 1200℃ (1 hr); 1100℃ (continuous)
- Heating Rate: ≤10℃/min
- Temp. accuracy: ±1.0℃
|
|
Processing Tube &
Vacuum Flange & Flange
|
- 8 quartz tubes with 20mm O.D. x 17mm I.D. x 192mm L are included
- 8 Quickly clamped flange with 1/8 gas inlet and outlet, as well as vacuum ports are built-in
- 16 Needle valves are optional to connect to the gas inlet and outlet for gas flow control
- 8 vacuum ports in the back will be connected to the vacuum pump via 8 to 1 adaptor
- Only one vacuum pump is required via a KF25 port.
- Max. Vacuum 10^-2 torr by a mechanical pump and 10^-5 torr by turbopump
|
|
Temperature Controller
|
- The 8-channel heating tube is controlled independently by 8 independent programmable temperature controllers, and integrated into a 7" touch-screen control panel.
- 8 K type Thermal Couple
- PC control software is included, which can control 8 channel heaters in one Laptop (optional)
|
|
Weight
|
~60kg
|
|
Dimension
|
620 H x 400 W x 780 L mm
|
|
Warranty
|
- One year limited warranty with lifetime support
- We reserve the right to upgrade the furnace structure for better performance without notice.
|
|
Warning & Notes
|
- Max. pressure of this furnace is 7.5 PSI (0.5 atm). A pressure regulator on the gas tank to avoid being over-pressured is necessary.
- This furnace also can be modified as a larger CVD furnace system with a proper gas delivery system. Please contact us to discuss your special application.
|
|
Certificate
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
1200C 8 Channel Tube Furnace GSL-1200X-MGI-8 Applications
1200C 8 Channel Tube Furnace GSL-1200X-MGI-8 is an excellent tool to research phase diagrams in MGI new generation material.
