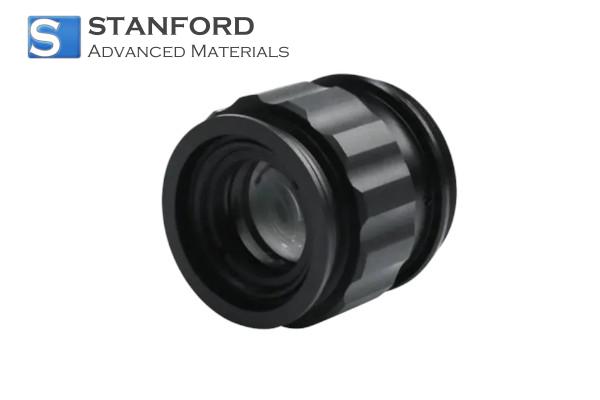

Athermalized IR Lens 9mm F/1.0 Description
Athermalized IR (Infrared) Lens is a specially designed infrared optical lens that compensates for temperature changes, maintaining focus without needing manual adjustment across a wide range of temperatures. These lenses are used in systems where temperature stability is crucial, such as thermal imaging cameras, infrared sensors, and other devices operating in variable environmental conditions.
Athermalized IR Lens 9mm F/1.0 Specifications
|
HFOV
|
160x120
|
384x288
|
640x512
|
1024x768
|
|
25μm
|
25.06°
|
-
|
-
|
-
|
|
17μm
|
17.19°
|
39.87°
|
-
|
-
|
|
12μm
|
12.18°
|
28.72°
|
-
|
-
|
Optical Properties
|
Focal Length (mm)
|
9mm
|
|
F/#
|
1.0
|
|
Average Transmission
|
>86%
|
|
Back Focal Length
|
8.87mm
|
Environmental Durability
|
Operating Temperature
|
-40℃ to +80℃
|
|
Storage Temperature
|
-50℃ to +80℃
|
|
Protection Rating
|
IR67
|
|
First Surface Coating
|
HD/AR
|
Mechanical Properties
|
Focusing Range
|
0.5m~∞
|
|
Back Working Distance
|
7.5mm
|
|
Detector Interface Size
|
M25X0.5
|
|
Overall Dimensions (mm)
|
Φ26x19
|
|
Weight
|
25g
|
*For drawing, please contact us.
Athermalized IR Lens 9mm F/1.0 Application
Athermalized IR Lens 9mm F/1.0 is widely used in laser, medicine, astronomy, infrared night vision and other fields.
Athermalized IR Lens 9mm F/1.0 Packing
Our Athermalized IR Lens 9mm F/1.0 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Faqs
Q1: What is an athermalized IR lens?
An athermalized IR lens is designed to maintain focus across varying temperatures without needing manual adjustment. It automatically compensates for thermal expansion and contraction, which can affect image clarity in infrared imaging applications.
Q2: How does an athermalized IR lens work?
It uses materials with differing thermal expansion rates or unique mechanical designs to counteract temperature-induced focal shifts. This allows it to remain in focus over a wide temperature range.
Q3: Why is temperature stability important in IR lenses?
IR lenses are often used in applications with significant temperature fluctuations. Temperature changes can cause expansion or contraction of lens materials, altering the focus. Athermalized lenses maintain clarity and focus automatically in these conditions.
Specification
|
HFOV
|
160x120
|
384x288
|
640x512
|
1024x768
|
|
25μm
|
25.06°
|
-
|
-
|
-
|
|
17μm
|
17.19°
|
39.87°
|
-
|
-
|
|
12μm
|
12.18°
|
28.72°
|
-
|
-
|
Optical Properties
|
Focal Length (mm)
|
9mm
|
|
F/#
|
1.0
|
|
Average Transmission
|
>86%
|
|
Back Focal Length
|
8.87mm
|
Environmental Durability
|
Operating Temperature
|
-40℃ to +80℃
|
|
Storage Temperature
|
-50℃ to +80℃
|
|
Protection Rating
|
IR67
|
|
First Surface Coating
|
HD/AR
|
Mechanical Properties
|
Focusing Range
|
0.5m~∞
|
|
Back Working Distance
|
7.5mm
|
|
Detector Interface Size
|
M25X0.5
|
|
Overall Dimensions (mm)
|
Φ26x19
|
|
Weight
|
25g
|
*For drawing, please contact us.
