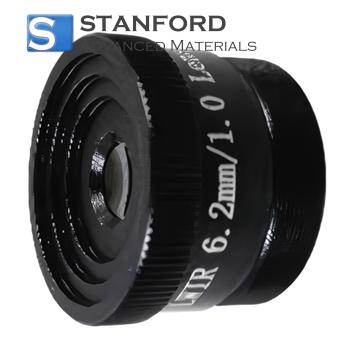

IR6420 Athermalized LWIR Lens 6.2mm F/1.0

Athermalized LWIR Lens 6.2mm F/1.0 Description

Athermalized LWIR Lens 6.2mm F/1.0 is meticulously engineered for superior performance in long-wave infrared (LWIR) imaging applications. Featuring a 6.2mm focal length and a bright F/1.0 aperture, this lens ensures exceptional light-gathering capability, delivering clear and high-resolution thermal images. Its athermalized design effectively compensates for temperature-induced optical variations, maintaining consistent focus and image quality across a wide range of environmental conditions without the need for frequent adjustments. Ideal for advanced thermal imaging cameras, surveillance systems, industrial inspection tools, and environmental monitoring equipment, this LWIR lens provides reliable and stable performance, enhancing the accuracy and efficiency of thermal detection and analysis in both commercial and military settings.

Athermalized LWIR Lens 6.2mm F/1.0 Specifications

Optical Properties

Environmental Durability

Mechanical Properties

*For drawing, please contact us.

Athermalized LWIR Lens 6.2mm F/1.0 Application

• Thermal Imaging Cameras: Improves the identification of thermal signatures for both commercial and military applications, providing sharp and detailed imagery under a variety of lighting conditions.
• Surveillance Systems: Enhances security monitoring capabilities by delivering reliable infrared imaging across a broad spectrum of environmental temperatures, eliminating the need for regular recalibration.
• Industrial Inspection: Supports non-invasive evaluation and supervision of machinery, electrical systems, and infrastructure by detecting thermal inconsistencies, thus preventing potential equipment failures.
• Environmental Monitoring: Facilitates the observation of natural events, such as wildlife activities and changes in habitats, through steady thermal imaging that remains effective despite fluctuations in ambient temperatures.

Athermalized LWIR Lens 6.2mm F/1.0 Packing

Our Athermalized LWIR Lens 6.2mm F/1.0 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.

FAQs

Q1: What is an athermalized IR lens?

An athermalized IR lens is designed to maintain focus across varying temperatures without needing manual adjustment. It automatically compensates for thermal expansion and contraction, which can affect image clarity in infrared imaging applications.

Q2: How does an athermalized IR lens work?

It uses materials with differing thermal expansion rates or unique mechanical designs to counteract temperature-induced focal shifts. This allows it to remain in focus over a wide temperature range.

Q3: Why is temperature stability important in IR lenses?

IR lenses are often used in applications with significant temperature fluctuations. Temperature changes can cause expansion or contraction of lens materials, altering the focus. Athermalized lenses maintain clarity and focus automatically in these conditions.
