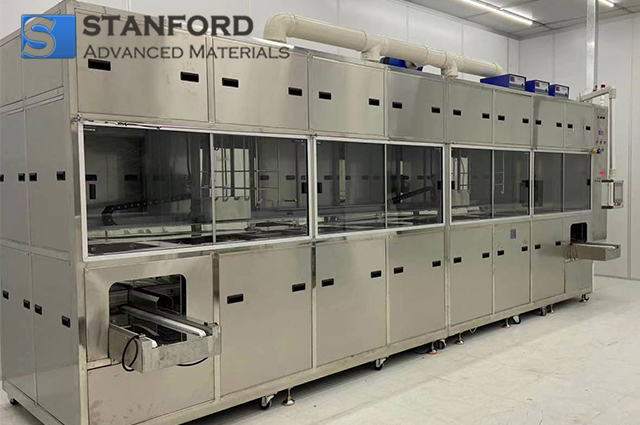

Automatic Ultrasonic Cleaning Machine for Precision Part Description
Automatic Ultrasonic Cleaning Machine for Precision Part is an automated ultrasonic cleaning equipment specially developed and designed for cleaning precision parts. Using PLC system and touch-screen human-machine interface operation, the entire process of cleaning process and parameter setting and modification can be automatically controlled, greatly improving cleaning efficiency and ensuring the high cleanliness requirements of precision parts.
Automatic Ultrasonic Cleaning Machine for Precision Part Specifications
Material
|
316L, 304
|
Overall Dimensions (mm)
|
5590*1700*2285
|
Inner Tank Size (mm)
|
350*460*250
|
Supply Voltage
|
380V 50Hz
|
Ultrasonic cleaning and rinsing
|
Ultrasonic Power
|
1800W/tank
|
Heating Power
|
3000W/tank
|
Frequency (kHz)
|
40, 68
|
Filter Accuracy
|
0.2μm
|
Working Temp.
|
Room Temp. to 95℃
|
Hot Air Drying Box
|
Drying Temperature
|
Room Temp. to 120℃
|
Heating Power
|
6000W
|
Filtration Precision
|
0.3mg/m³
|
Vacuum Drying Box
|
Drying Temperature
|
Room Temp. to 150℃
|
Heating Power
|
1500W
|
Negative Pressure
|
-100KPa
|
*For more specifications of the products, please Contact Us.
Automatic Ultrasonic Cleaning Machine for Precision Part Applications
Engineered with precision and reliability in mind, Automatic Ultrasonic Cleaning Machine for Precision Part is an automated ultrasonic cleaning equipment specially developed and designed for cleaning precision parts.
Automatic Ultrasonic Cleaning Machine for Precision Part Packaging
Our Automatic Ultrasonic Cleaning Machine for Precision Part is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Specification
Material
|
316L, 304
|
Overall Dimensions (mm)
|
5590*1700*2285
|
Inner Tank Size (mm)
|
350*460*250
|
Supply Voltage
|
380V 50Hz
|
Ultrasonic cleaning and rinsing
|
Ultrasonic Power
|
1800W/tank
|
Heating Power
|
3000W/tank
|
Frequency (kHz)
|
40, 68
|
Filter Accuracy
|
0.2μm
|
Working Temp.
|
Room Temp. to 95℃
|
Hot Air Drying Box
|
Drying Temperature
|
Room Temp. to 120℃
|
Heating Power
|
6000W
|
Filtration Precision
|
0.3mg/m³
|
Vacuum Drying Box
|
Drying Temperature
|
Room Temp. to 150℃
|
Heating Power
|
1500W
|
Negative Pressure
|
-100KPa
|
*For more specifications of the products, please Contact Us.
