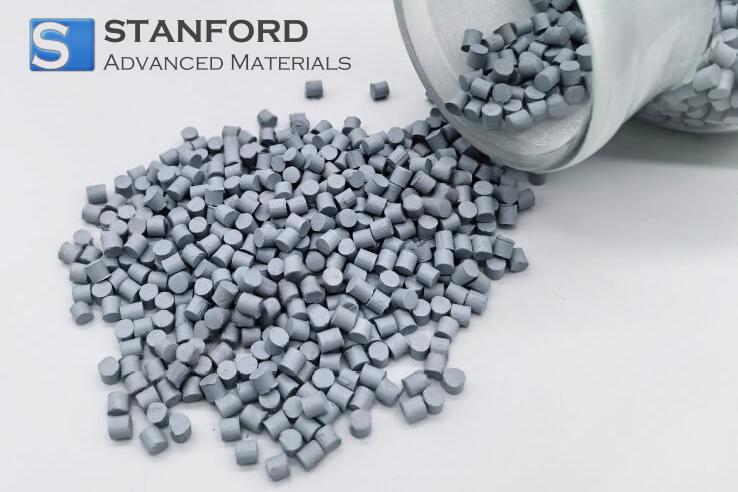

CM6407 506TJW Methane Removal Catalyst

506TJW Methane Removal Catalyst Description

506TJW Methane Removal Catalyst is a precious metal-semiconductor strong interaction system. It is primarily used to remove hydrocarbons, including methane, from oxygen-containing gases or gases containing oxygen. The working principle is that when the raw gas passes through the catalyst, the hydrocarbons and methane impurities in the gas react with oxygen to form water and carbon dioxide, achieving the goal of hydrocarbon removal and purification.

This catalyst features high catalytic activity, deep purification, large gas processing capacity, a wide range of applicable temperatures and pressures (it does not erode at 650°C), no need for activation and regeneration, high mechanical strength, resistance to pulverization, and sustained activity for continuous use over many years. It also has excellent resistance to poisoning from toxic substances such as H₂S, SO₂, Cl₂, NH₃, etc. It is safe to use and easy to operate.

506TJW Methane Removal Catalyst Specifications

506TJW Methane Removal Catalyst Applications

• Simultaneously removes carbon monoxide (CO) and oxygen from mixed gases containing both CO and oxygen (excluding olefins).
• Removes CO when the O₂ chemical ratio is higher than CO.
• Removes O₂ when the CO chemical ratio is higher than O₂.
• Widely used in chemical and other industrial gases for CO and oxygen removal.
• Increasing applications in environmental protection.

506TJW Methane Removal Catalyst Packaging

Our 506TJW Methane Removal Catalyst is carefully handled during storage and transportation to preserve the quality of our product in its original condition.

Instruction For Use

• Evenly load the 506TJW catalyst into the reactor without vibration or compaction, and seal the reactor.
• Introduce the gas to be purified, control the space velocity at 300 hr⁻¹, and turn on the heating power. Control the heating in 2–3 stages to eventually stabilize the reactor temperature at 420°C. Once the catalyst temperature is uniform, it can be put into use.
• With this catalyst, no pre-treatment, activation, or regeneration is required. It can be used continuously for several years.
