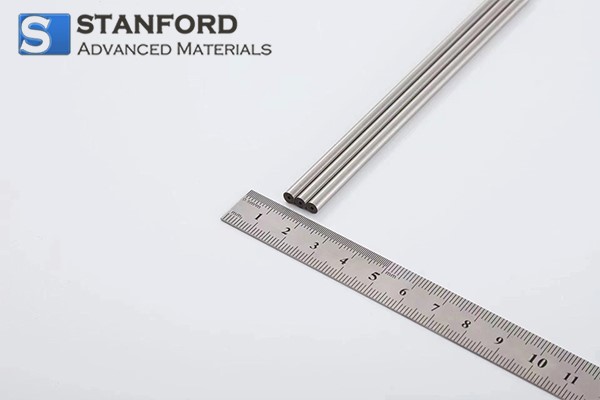

Hastelloy C2000 Capillary Tube Description
Hastelloy C2000 Capillary Tube is a type of small-diameter tube made from Hastelloy C-2000, a versatile, nickel-chromium-molybdenum alloy with a unique chemistry designed to provide enhanced resistance to both oxidizing and reducing environments. Hastelloy C-2000 expands on the corrosion resistance found in other Hastelloy grades by adding copper to its alloy composition, which significantly improves its resistance to sulfuric acid, one of the most common and challenging corrosive agents in the chemical processing industry.
Hastelloy C2000 Capillary Tube Specification
|
Grade
|
Hastelloy C2000 / UNS N06200 / Cr23Ni57Mol6Cu2
|
|
Shape
|
Capillary Tube
|
|
Density (g/cm3)
|
8.5
|
|
Tensile Strength (MPa)
|
752
|
|
Yield Strength (MPa)
|
345
|
|
Elongation %
|
62
|
|
Size
|
Seamless pipe:
OD:6-630, WT:0.3-100mm
Capillary tube:
OD:0.2-6, WT:0.02-2mm
|
Chemical Composition (%)
|
%
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
Cu
|
Fe
|
Al
|
Ni
|
|
Min
|
≤0.01
|
≤0.5
|
≤0.5
|
≤0. 04
|
≤0. 02
|
22
|
15
|
1.3
|
≤3.0
|
≤0.5
|
Bal.
|
|
Max
|
-
|
-
|
-
|
-
|
-
|
24
|
17
|
1.9
|
-
|
-
|
-
|
Hastelloy C2000 Capillary Tube Applications
- Chemical Processing Industry: Hastelloy C2000 Capillary Tubes are widely used in the chemical processing industry, including reactors, heat exchangers, and piping systems.
- Petrochemical and Oil & Gas Industries: In the petrochemical sector, these tubes are employed in applications such as sour gas wells and other environments where hydrogen sulfide and other corrosive substances are present.
- Pharmaceutical Industry: Hastelloy C2000 Capillary Tubes are used in systems for transporting and handling aggressive solvents, reagents, and other substances used in pharmaceutical manufacturing processes.
Hastelloy C2000 Capillary Tube Packaging
Our Hastelloy C2000 Capillary Tube is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
