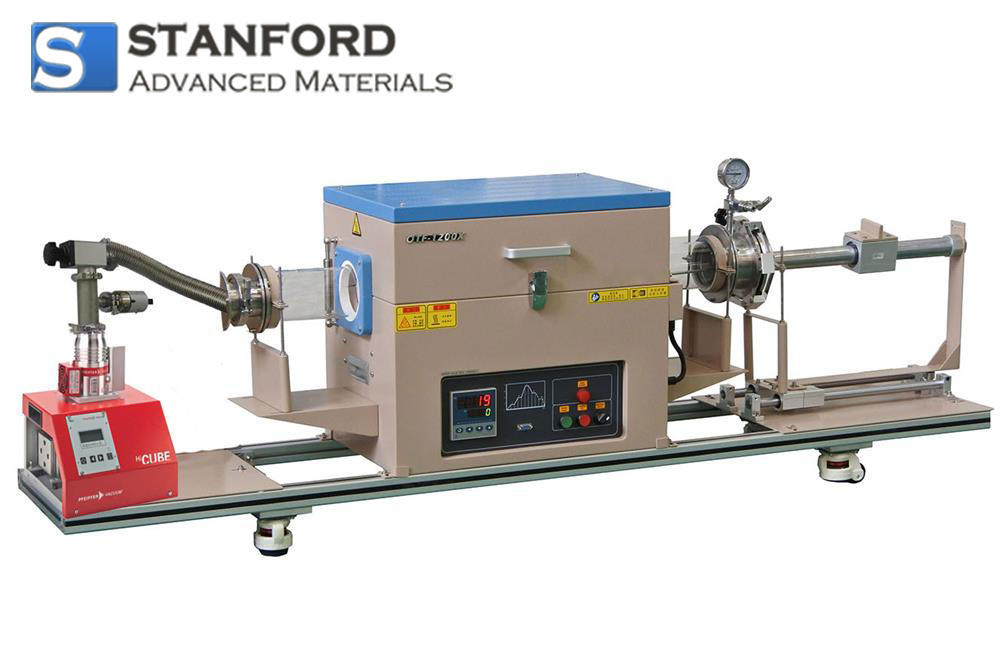

Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD Description
Vacuum Sealed Crucible Mobile Tube Furnace is a splittable tubular furnace with a crucible sliding function (manually pushing) in a high vacuum or air-tight atmosphere, with a maximum temperature of 1200 °C. The vacuum-sealed manual push crucible is actualized by a magnetic coupling vacuum push system. There is a thermocouple inside the tube, which displays the temperature at the location of the crucible in real-time. This equipment can perform titanium sheet annealing, rapid heat treatment, hybrid physical and chemical deposition (HPCVD), rapid thermal evaporation (RTE), and horizontal Bridgman crystal growth (HDC) under various atmospheres for the research of new-generation materials. The exhaust port is equipped with liquid/gas separation, which can separate the liquid and gas in the exhaust gas and can be used for sediment analysis and collection.
Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD Specifications
|
Features
|
- The mobility of crucible in vacuum/atmosphere through magnetic coupling drive.
- Real-time temperature measurement by a thermocouple at the bottom of the crucible.
- The flange of the left end is connected with a clamp to reach samples conveniently.
- The exhaust gas treatment system has a condensation function to achieve separation of colloids/liquids and gases.
|
|
Working Temperature
|
- Max. heating temperature: 1200℃ (<30min)
- Continuous working temperature: 1100℃
- Heating rate: 10℃/s
|
|
Working Voltage
|
AC 220V Single phase 50/60Hz
|
|
Power
|
3.5KW
|
|
Chamber System
|
- Heating zone length: 400mm
- Two thermocouples: K type
(one for furnace temperature control, one for detecting sample temperature)
|
|
Quartz tube size
|
- 50 O.D x 44 I.D x 1000 L (mm)
- 60 O.D x 55 I.D x 1000 L (mm)
- 80 O.D x 75 I.D x 1000 L (mm)
- 100 O.D x 95 I.D x 1000 L (mm)
|
|
Temperature Control
|
- Two temperature controllers are included. One is for controlling furnace temperature, and another is for displaying moveable crucible temperature
- PID automatic control via solid-state relay with 50 steps programmable
- Built-in Over Temperature and Thermocouple Failure Protection
- Optional: The furnace may be operated by PC by installing a control module. Please order an MTS02-B control module at extra cost.
|
|
Vacuum Flanges and Vacuum Actuator
|
4" flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert), and a KF40 vacuum port to connect a vacuum pump
4"quick clamping flange with magnetically coupled vacuum actuator
The vacuum actuator rod will hold a quartz crucible with quartz thermal buffer, which can move in or out a sample in the crucible manually to achieve heating or cooling rapidly
K type thermal couple is located bottom of the crucible to control the temperature
- Optional: Electric actuator is available upon request at the extra cost
|
|
Vacuum Pump
|
- A turbopump is included to connect the left side flange
- 10-6 torr max (cold state)
|
|
Warranty
|
- One year limited warranty with lifetime support.
- ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of SAM One Year Limited Warranty.
|
|
Equipment Dimensions
|
2100mm L*410mm W* 690mm H
|
|
Certificate
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD Applications
Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD can carry out titanium sheet annealing, rapid heat treatment, hybrid physical and chemical deposition (HPCVD), rapid thermal evaporation (RTE), and horizontal Bridgman crystal growth (HDC) under various atmospheres for the research of new-generation materials.
Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD Packaging
Our Vacuum Sealed Crucible Mobile Tube Furnace OTF-1200X-DVD is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
