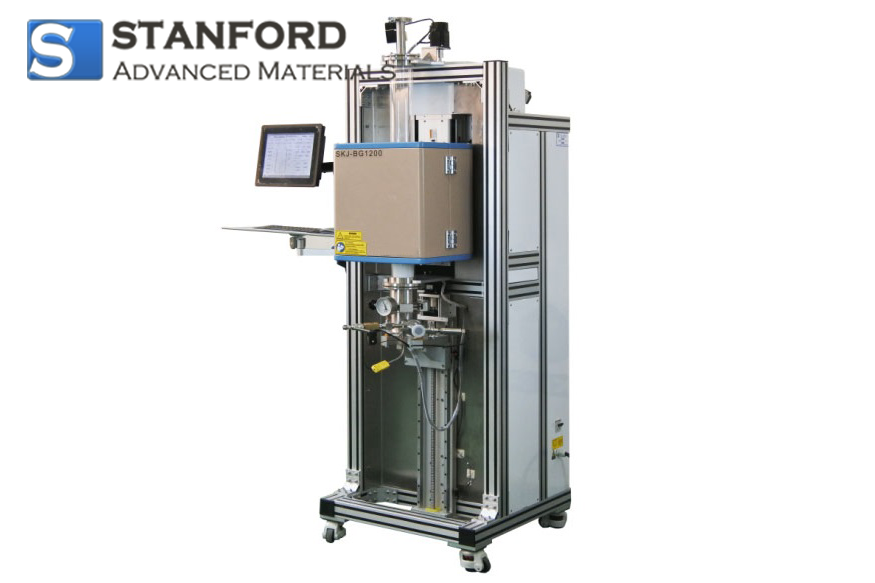

Bridgman Crystal Growth Furnace SKJ-BG1200-5S Description
Bridgman Crystal Growth Furnace is a 1200℃ Bridgman crystal growth furnace with a 72 mm ID quartz tube and precision travel mechanism, which is designed for growing small-size crystals under a controlled atmosphere up to 1200℃. The Bridgman method is a well-known technique in crystal growth, particularly for producing high-quality crystals with low thermal gradients.
Bridgman Crystal Growth Furnace SKJ-BG1200-5S Specifications
|
Features
|
- The mobility of crucible in vacuum/atmosphere through magnetic coupling drive.
- Real-time temperature measurement by a thermocouple at the bottom of the crucible.
- The flange of the left end is connected with a clamp to reach samples conveniently.
- The exhaust gas treatment system has a condensation function to achieve separation of colloids/liquids and gases.
|
|
Working Temperature
|
- Max. heating temperature: 1100℃ (<30min)
- Continuous working temperature: 1000℃
- Heating rate: 10℃/s
|
|
Working Voltage
|
AC 220V Single phase 50/60Hz
|
|
Power
|
3KW
|
|
Chamber System
|
- Heating zone length: 400mm
- Two thermocouples: K type
(one for furnace temperature control, one for detecting sample temperature)
|
|
Furnace tubes and flanges
|
- High-purity quartz tube
- Furnace tube size: φ130*750 mm
- 316L stainless steel sealing flange, fluorine rubber O-ring seal
- Crucible size: OD φ80mm* IDφ 74mm*H 40mm
|
|
Travel Mechanism
|
- DC motor with precision screw drives the furnace up or down for crystal growth
- Travel distance: 200 mm Max.
- Travel speed range: 0.03 mm /hr. - 30 mm /hr. adjustable with +/- 1 micron accuracy (standard)
|
|
Temperature Control
|
- Two temperature controllers are included.
- PID automatic control via solid-state relay with 50 steps programmable
- Built-in Over Temperature and Thermocouple Failure Protection
- Optional: The furnace may be operated by PC by installing a control module. Please order an MTS02-B control module at extra cost.
|
|
Vacuum Pump (Optional)
|
- Type: VRD-8
- Pumping rate: 2.2 L/s
- Motor Power: 370W
- Ultimate pressure (without load): 5*10-1 Pa
- Actual pressure: ≤5 Pa
|
|
Warranty
|
- One year limited warranty with lifetime support.
- ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of SAM One Year Limited Warranty.
|
|
Equipment Dimensions
|
1200mm L*650mm W* 1900mm H
|
|
Weight
|
150kg
|
|
Certificate
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
Bridgman Crystal Growth Furnace SKJ-BG1200-5S Applications
Bridgman Crystal Growth Furnace SKJ-BG1200-5S can carry out titanium sheet annealing, rapid heat treatment, hybrid physical and chemical deposition (HPCVD), rapid thermal evaporation (RTE), and horizontal Bridgman crystal growth (HDC) under various atmospheres for the research of new-generation materials.
Bridgman Crystal Growth Furnace SKJ-BG1200-5S Packaging
Our Bridgman Crystal Growth Furnace SKJ-BG1200-5S is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
