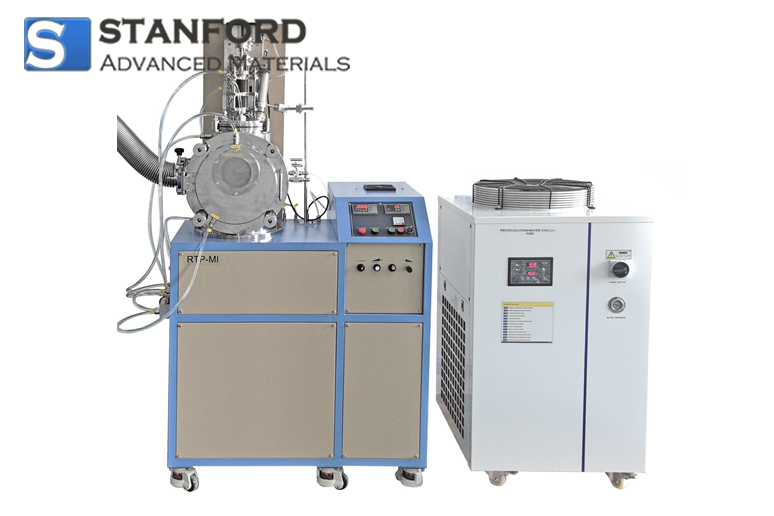

Ultrafast Heating & Pressing Furnace RTP-MS Description
Ultrafast Heating & Pressing Furnace RTP-MS is a state-of-the-art thermal processing unit designed for high-speed heating and pressing applications. This furnace rapidly heats up to 2900°C at a rate exceeding 200°C per minute, while accommodating a maximum load of 500 kg. It features a robust stainless steel vacuum chamber equipped with a water-cooling jacket, capable of achieving ultra-high vacuum levels down to 10^-7 torr, ensuring optimal conditions for heat treatment processes.
- Enhanced Temperature Control: Equipped with an IR temperature sensor for precise digital temperature monitoring and control.
- Versatile Molding Capabilities: Includes two types of high-quality graphite dies and crucibles, catering to diverse molding requirements.
- Advanced Pressure Adjustment: A digital load cell is integrated to meticulously control loading pressure, enhancing the uniformity and quality of material processing.
Ultrafast Heating & Pressing Furnace RTP-MS Specifications
|
Features
|
- Stainless steel vacuum chamber with a water-cooling jacket that enables it to reach 10-7 torr;
- Two types of graphite die and the crucible are included;
- The digital load cell is built to control loading pressure;
- The IR temperature sensor is included for digital temperature control.
|
|
Basic Parameters
|
- Max. Heating Temp.: 2900℃
- Max. Working Time: 120 Min.
- Max Heating rate: 200℃/s
|
|
Power
|
208-240 VAC, 50/60Hz, Single Phase
18kw
|
|
Graphite Heater
|
Two sets of 2" graphite heaters are included:
- Pellet die heater: 10 mm ID, 60 MPa
- Crucible type heater: 33 mm ID with lid
- The customized heater is available upon request
|
|
Pressing Pressure
|
- A movable rod with Vacuum sealed is installed on the top flange of the vacuum chamber
- Pushing rod travel distance: 60 mm
- Two ceramic plates will be pressed on the graphite heater
- An electric motor-driven top rod to apply pressure to graphite pellet die with a precision load sensor
- Max. loading force is 500 Kg with accuracy+/- 0.5 kg
|
|
Temperature Control
|
- A digital IR temperature sensor is built in with a laser point
(1) Manual heating with IR temperature display to achieve max heating rate ( ~ 200℃/S)
(2) Programmable temperature control by IR sensor and digital display
|
|
Vacuum Control
|
- Material of Vacuum Chamber: SS304
- Vacuum Chamber dimensions: φ345 x L380mm
- Vacuum chamber is built by a double layer for water cooling.
- 138 mm diameter quartz window is installed on the front of the door for observation
- KF 40 vacuum port to connect to a vacuum pump
- 1/4" gas inlet and outlet with valve is installed
- The digital vacuum gauge is included, and the vacuum pump is optional.
Vacuum level:
1. 10-2 torr by mechanical pump
2. 10-5 by compact turbopump
3. 10 -7 torr by larger turbopump
|
|
Recirculating Water Chiller
|
- Recirculating Water Chiller
|
|
Net Weight
|
~400 kg
|
|
Warranty
|
- One year limited warranty with lifetime support.
- ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of SAM One Year Limited Warranty.
|
|
Certificate
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
Ultrafast Heating & Pressing Furnace RTP-MS Applications
Ultrafast Heating & Pressing Furnace RTP-MS is a type of small high-temperature furnace typically used for research and small-scale production. It allows for material processing and testing at high temperatures within a controlled atmosphere or vacuum setting. The applications of this furnace are varied and include:
1. Material Science Research:
Used for the development and testing of new materials such as high-performance alloys, ceramics, and composites.
Studies the performance changes of materials under different temperatures and environments.
2. Heat Treatment:
Performs heat treatments like annealing, quenching, and tempering on metals to alter their mechanical properties.
Heat treats tool steels and precision components to enhance their wear resistance and hardness.
3. Ceramic Sintering:
Manufactures ceramic materials, such as oxides and non-oxides, requiring sintering at high temperatures in controlled environments to achieve desired properties.
4. Electronics and Semiconductor Manufacturing:
Used for annealing semiconductor wafers to enhance the material's electronic properties.
Ultrafast Heating & Pressing Furnace RTP-MS Packaging
Our Ultrafast Heating & Pressing Furnace RTP-MS is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
