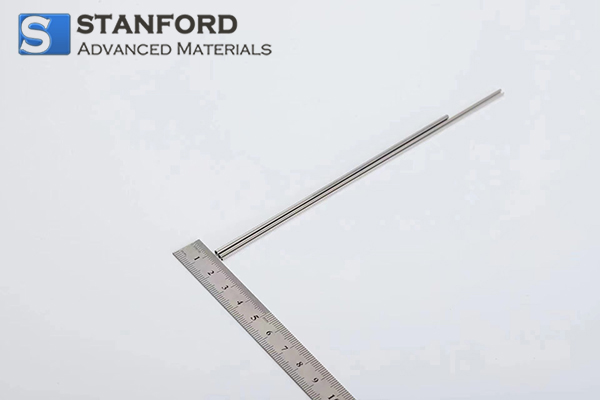

Incoloy 28 Capillary Tube Description
Incoloy 28 Capillary Tube refers to a small-diameter tube or pipe with a very narrow internal diameter. Incoloy 28 is the grade with the highest nickel content among stainless steels. Because the Ni content is >30%, it is sometimes included in the iron shackle-based corrosion-resistant alloy. It has excellent general corrosion resistance in many strong reducing corrosion environments. Moreover, in some oxidizing, oxidation-reduction complex, and halogen-containing media, it is resistant to both general corrosion and local corrosion. In addition, this steel has an austenitic structure and has excellent strength, plasticity, and toughness. Therefore, this steel is a steel type with excellent comprehensive performance matching.
Capillary tubes are used in various applications where precise control of fluid flow is required. Capillary Tubes are available in exact cut-to lengths and are also extremely operational in a wide range of high temperatures. These Capillary Tubes can be made in personalized thicknesses and sizes as per the specific requirements of our clients.
Incoloy 28 Capillary Tube Specification
|
Grade
|
Incoloy 28
|
|
Shape
|
Capillary Tube
|
|
Density (g/cm3)
|
8.0
|
|
Melting Point (℃)
|
1350-1370
|
|
Size
|
Seamless pipe:
OD:6-630, WT:0.3-100mm
Capillary tube:
OD:0.2-6, WT:0.02-2mm
|
Chemical Composition (%)
|
%
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Mo
|
Ni
|
N
|
Cu
|
|
Min
|
-
|
-
|
-
|
-
|
-
|
26
|
3
|
30
|
-
|
0.7
|
|
Max
|
0. 02
|
0.7
|
2
|
0. 03
|
0.01
|
28
|
4
|
32
|
0. 11
|
1.5
|
Incoloy 28 Capillary Tube Applications
Incoloy 28 Capillary Tube is widely used in high-temperature fans and shafts of industrial furnaces, conveyor belts, hot press plates, crude oil heaters and steam boiler pipe hangers, etc.
Incoloy 28 Capillary Tube Packaging
Our Incoloy 28 Capillary Tube is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
