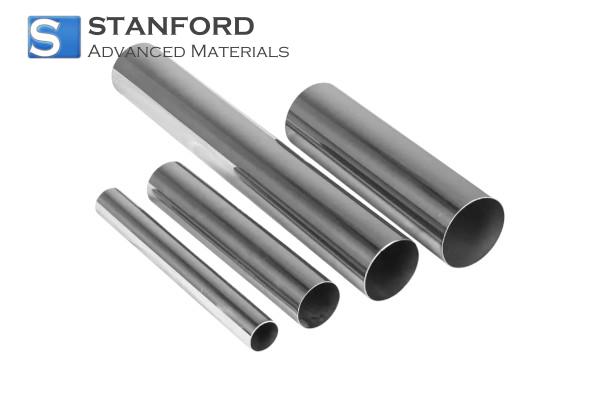

Incoloy 800H Capillary Tube Description
Incoloy 800H Capillary Tube refers to a small-diameter tube or pipe with a very narrow internal diameter. Incoloy 800H is an austenitic heat-resistant alloy widely used in high-temperature pressure-bearing structural parts. Its high strength is mainly due to the addition of carbon, aluminum, and titanium elements, and it is annealed at a minimum temperature of 1149℃ to achieve the grain size ASTM5 level. Incoloy 800H is resistant to many corrosive media. Its high nickel content makes it highly resistant to stress corrosion cracking in aqueous corrosive conditions. The high chromium content gives it better resistance to corrosion and crevice corrosion cracking.
Capillary tubes are used in various applications where precise control of fluid flow is required. Capillary Tubes are available in exact cut-to lengths and are also extremely operational in a wide range of high temperatures. These Capillary Tubes can be made in personalized thicknesses and sizes as per the specific requirements of our clients.
Incoloy 800H Capillary Tube Specification
|
Grade
|
Incoloy 800H
|
|
Shape
|
Capillary Tube
|
|
Density (g/cm3)
|
8.0
|
|
Melting Point (℃)
|
1350-1400
|
|
Size
|
Seamless pipe:
OD:6-630, WT:0.3-100mm
Capillary tube:
OD:0.2-6, WT:0.02-2mm
|
Chemical Composition (%)
|
%
|
Gr
|
Ni
|
Mn
|
Si
|
AI
|
Ti
|
AI+Ti
|
C
|
Cu
|
P
|
S
|
Fe
|
|
Min.
|
19
|
30
|
-
|
-
|
0. 15
|
0. 15
|
0. 85
|
0. 06
|
-
|
-
|
-
|
39.5
|
|
Max.
|
23
|
35
|
1.5
|
1
|
0.6
|
0.6
|
1.2
|
0.1
|
0.75
|
0.045
|
0.015
|
-
|
Incoloy 800H Capillary Tube Applications
- Nitric acid condenser
- Steam heating tube
- Thermal element tube
Incoloy 800H Capillary Tube Packaging
Our Incoloy 800H Capillary Tube is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
