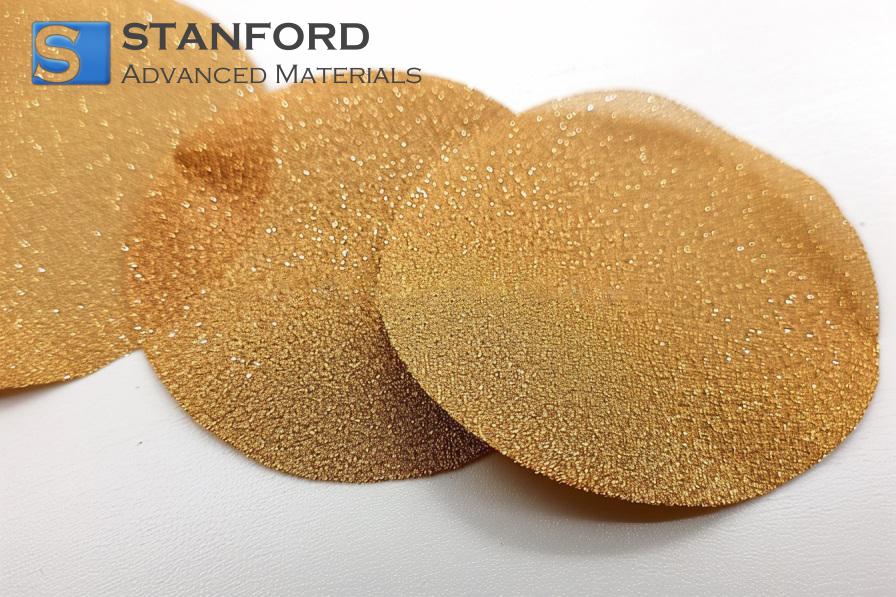

Copper Fiber Felt Description
Copper Fiber Felt is a high-performance filter material created by laminating multiple layers of copper woven wire mesh, followed by pressing and vacuum sintering. This process results in a material with high mechanical strength and a rigid overall structure. The mesh holes in each layer are interlaced to form a uniform and ideal filtering structure, addressing the limitations of ordinary metal wire mesh, such as low strength, poor rigidity, and unstable mesh shape. The pore size, permeability, and strength characteristics can be precisely tailored and designed, giving the Copper Fiber Felt excellent filtering accuracy, low filtering impedance, high mechanical strength, wear resistance, heat resistance, and processability.
Copper Fiber Felt Specifications
Material
|
Copper
|
Filtration Grade (μm)
|
0.2-200
|
Working Temperature
|
<300℃
|
Porosity
|
20-50%
|
Size
|
Disc: Dia.5-1200mm
Rectangular: 1500*1200mm (Max.)
|
Filter Parameters
Filtration Grade
(μm)
|
Bubble Point Pressure
|
Air Permeability
|
Thickness
|
Support Layer
(mm)
|
Diversion Layer
(mm)
|
Protective Layer
(mm)
|
Pa
|
(min·dm2)
|
mm
|
Value
|
Tol.
|
Value
|
Tol.
|
Value
|
Tol.
|
2
|
4000
|
±10%
|
260
|
±20%
|
1.70
|
±0.05
|
12*64
0.63*0.42
|
0.15
0.1
|
0.15
0.1
|
5
|
3500
|
280
|
1.70
|
10
|
2900
|
320
|
1.70
|
15
|
2400
|
350
|
1.70
|
20
|
1500
|
680
|
1.70
|
25
|
1150
|
750
|
1.70
|
30
|
800
|
950
|
1.70
|
50
|
600
|
1050
|
1.70
|
Copper Fiber Felt Applications
- Used for highly corrosive liquid filtration
- Used for petroleum and chemical melt filtration
- Medical and biological liquid filtration
- Seawater, ships
- Electrolyzer for hydrogen production by water electrolysis
Copper Fiber Felt Packaging
Our Copper Fiber Felt is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
