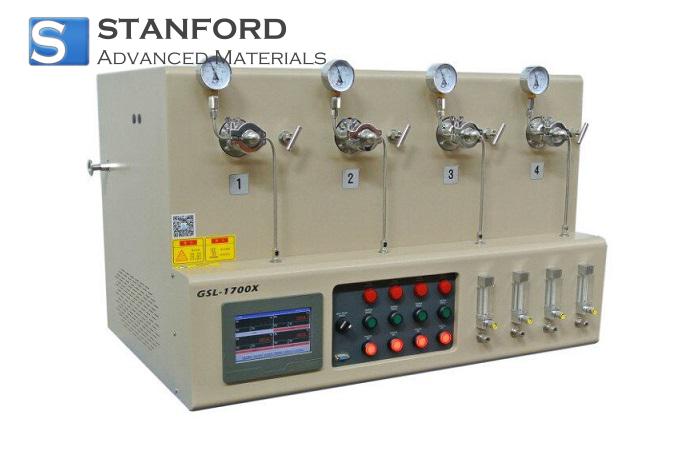

1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 Description
1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 is a compact, high-performance four-channel tube furnace specifically designed for high-throughput heat treatment research of alloy and ceramic materials, capable of reaching temperatures up to 1700°C. This advanced furnace is essential for investigating phase diagrams in MGI's new-generation materials.
The furnace comprises four small tube furnace modules, each equipped with an alumina tube measuring 25 mm in outer diameter, 22 mm in inner diameter, and 460 mm in length. Each heating module operates independently, allowing precise temperature control up to 1700°C without any temperature influence between the modules. This independent control feature ensures highly accurate and reliable results, making it ideal for complex thermal processing tasks.
In addition to its precise temperature control, the GSL-1700X-MGI-4 is equipped with a quickly sealed flange, vacuum gauge, and flow meter. These components enable heat treatment under vacuum conditions or with flowing gas, providing versatility for a wide range of experimental requirements. The ability to process up to four samples simultaneously at different temperatures further enhances the furnace's efficiency and productivity.
Despite its advanced capabilities, the GSL-1700X-MGI-4 is designed to be compact, optimizing laboratory space without compromising functionality. This space-efficient design makes it suitable for various research environments, from academic laboratories to industrial research facilities.
1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 Specifications
|
Furnace Structure
|
- The furnace is consistent with 4 small tube furnace modules with alumina tube 25 OD x 22 ID x 460 L, mm
- Each heating module's temperature is controlled independently up to 1700°C
- Quickly sealed flange, Vacuum gauge, and flowmeter are installed to allow heat treatment under vacuum or flowing gas
- Processing 4 samples with different temperatures at compact space
|
|
Heating Element
|
MoSi2
|
|
Power
|
6 KW, AC208-240V, single phase, 50/60Hz
|
|
Processing Tube
|
- High purity alumina tube with Φ25X L 460 mm, 4 tubes included
- 4 flowmeters are included
- The quickly clamped flange of KF25 with mechanical vacuum gauge and needle valves
- Max. Vacuum 10-5 torr by turbopump
- Only one vacuum pump is required via a KF25 port.
|
|
Working Temp.
|
- Max. Temp: 1600℃ (continuous); 1700℃ (<1 hr)
- Heating Rate: ≤10℃/min
|
|
Temperature Control
|
- Touch screen precision temperature controller with the protection of over-temperature and Thermal couple broke.
- 4 channel heating tube is controlled independently by 30 segments programmable temperature controller
- 4 B type Thermal Couple
- PC control software is included, which can control 4 channel heaters by one Laptop
|
|
Dimension
|
1000 L x 650 W x 640 H mm
|
|
Warranty
|
- One year limited warranty with lifetime support
- We reserve the right to upgrade the furnace structure for better performance without notice.
|
|
Certificate
|
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
|
Warning
|
Max pressure of this furnace is 7.5 PSI (0.5 atm). You must install a pressure regulator on your gas tank to avoid being over-pressured.
|
1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 Applications
1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 is essential for investigating phase diagrams in MGI's new-generation materials.
1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 Packaging
Our 1700C 4 Channel Tube Furnace GSL-1700X-MGI-4 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
