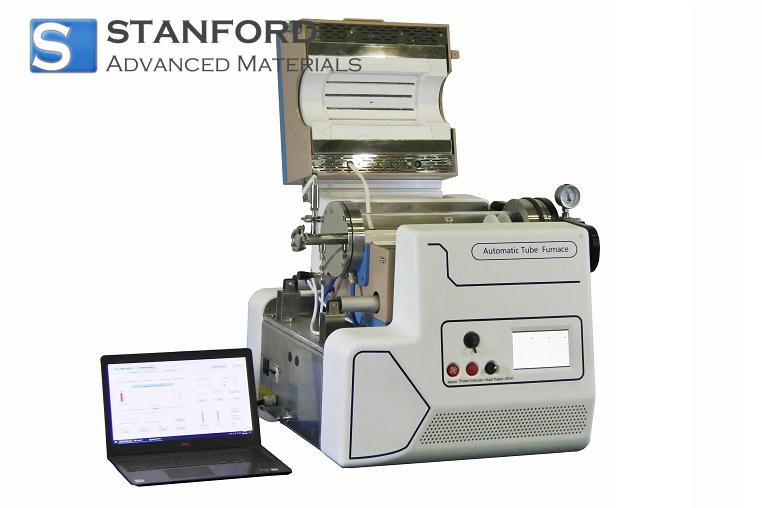

1200C 5” Automated Tube Furnace OTF-1200XS5-ASD Description
1200C 5” Automated Tube Furnace OTF-1200XS5-ASD is a state-of-the-art 5" OD tube furnace that delivers fully automated thermal processing with exceptional precision and efficiency. Ideal for high-throughput applications, this advanced furnace system streamlines the entire process from vacuum sealing to sample loading and unloading.
When paired with a robot, the OTF-1200XS5-ASD offers seamless automation of vacuum sealing, purging, heating, and cooling sequences, all initiated with a single click. The furnace's capabilities extend to remote control, data logging, and fully automated sample handling when integrated with a laptop and robotic system. This level of automation significantly enhances operational efficiency and accuracy, making it an invaluable tool for researchers and industrial applications.
The furnace operates at a maximum working temperature of 1200°C, ensuring it meets the demands of various high-temperature processes. Its double-layer steel structure, combined with a splittable cover, provides durability and ease of access. Inside, high-purity Al2O3 fibrous insulation maximizes energy savings, making the OTF-1200XS5-ASD both cost-effective and environmentally friendly.
1200C 5” Automated Tube Furnace OTF-1200XS5-ASD Specifications
|
Furnace Structure
|
- Double-layer steel structure with split cover
- High-purity Al2O3 fibrous insulation with Max. energy saving
- 5" quartz tube (130mm O.D x 120mm I.D x 520mmL) is included
- The pressure sensor is built in to control chamber pressure automatically
- One MFC is built in to control the gas flow rate automatically
|
|
Airtight Flanges and Sliding
|
- 5" Dia. Water-cold stainless-steel flange with silicone O-ring and valves for airtight heat treatment
- Right side flange will be driven by a dual compressive cylinder for closing or opening via electric valves
- A Digital pressure sensor is built-in to control pressure from 1 Pa to 200 KPa automatically
- Max. The vacuum level is dependent on the vacuum pump.
- One rotary vacuum pump is included, which can reach a 10 Pa vacuum.
|
|
Sample Stage (Holder)
|
- ~ 100 x 100 mm sample stage with baffles are made of machinable alumina
- The sample stage is installed with a slidable flange on the right side
- One crucible holder (made of alumina) with 4 holes is included to carry 4 alumina crucibles with 40 mm dia x 40 mm height
- 8 pcs 36 ml pure alumina crucible are included for immediate use
- Customized sample holder and the crucible are available upon request
|
|
Control Panel & Software
|
- Touch screen control panel to program all parameters, including:
Chamber pressure (1-200 KPa)
Gas flow rate (0 - 2000ml/minute)
Purging cycles (0 - 3 times)
Temperature program (heating rate, dwell time, and cooling rate) up to 30 segments
The flange closes/opens
- RJ45 communication port is installed on the front panel to connect to the PC or wireless router to achieve remote control
- PC operation software is included which can support 8 sets of furnace
- Communication code is opened to the existing customer to connect the device to robots for unmanned operation
|
|
Power
|
3 KW, AC220V, single phase, 50/60Hz
|
|
Working Temp.
|
- Max. Temp: 1100℃ (continuous); 1200℃ (<1 hr)
- Heating Rate: ≤10℃/min
|
|
Dimension
|
780 L x 770 W x 820 H mm
|
|
Weight
|
~160 kg
|
|
Warranty
|
One-year limited warranty with lifetime support
|
|
Certificate
|
NRTL or CSA certification is available at extra cost.
|
|
Warning
|
The furnace lid is relatively heavy. Open with care to avoid furnace flipping over.
|
1200C 5” Automated Tube Furnace OTF-1200XS5-ASD Applications
1200C 5” Automated Tube Furnace OTF-1200XS5-ASD is a 5" OD tube furnace designed for fully automated thermal processing. When paired with a robot, it automates vacuum sealing, purging, heating, and cooling sequences with a single click. This furnace can be integrated with a laptop and robot for remote control, data logging, and automated sample loading and unloading. It is ideal for applications requiring high-throughput, precision temperature control, and efficient sample handling in research and industrial settings.
1200C 5” Automated Tube Furnace OTF-1200XS5-ASD Packaging
Our 1200C 5” Automated Tube Furnace OTF-1200XS5-ASD is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
