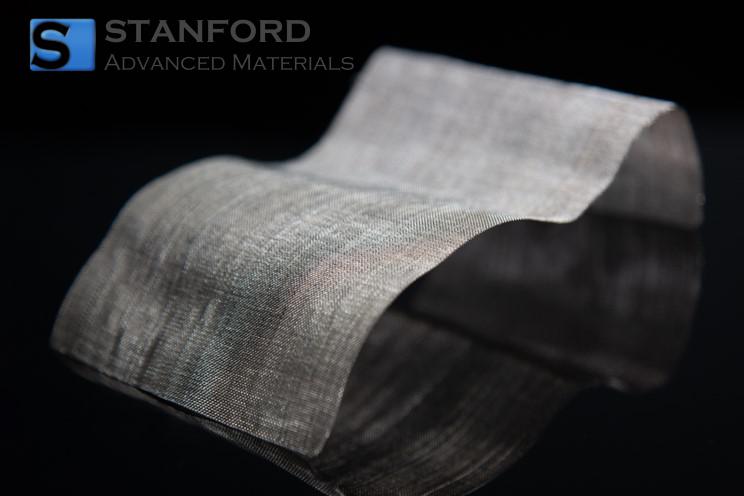

Platinum Palladium Rhodium Catalytic Mesh Description
Platinum Palladium Rhodium Catalytic Mesh offers exceptional catalytic efficiency, durability, and versatility in high-temperature industrial applications. It is essential for processes like nitric acid and hydrogen cyanide production, where precise and reliable catalysis is required. Although it comes with a high initial cost, its recyclability and superior performance make it a valuable investment for industries requiring high-end catalytic solutions.
Platinum Palladium Rhodium Catalytic Mesh Specifications
|
Material
|
Pt, Pd, Rh
|
|
Composition
|
Pt4Pd3.5Rh
Pt5Pd5Rh
|
|
Density
|
20.3 g/cm3
|
|
Mesh
|
5-80
|
|
Size (mm)
|
φ575, φ810, etc.
side length: 410, 525, etc.
|
|
Wire Diameter
|
0.06-3 mm
|
|
Shape
|
Mesh
|
|
Max Temperature
|
1,400 to 1,700℃
|
Mesh Type
|
Plain Weave Mesh
|
Weft-knitted Mesh
|
|
Warp-knitted Mesh
|
Multilayer Mesh
|
*For more information, please contact us.
Platinum Palladium Rhodium Catalytic Mesh Applications
- Nitric Acid Production (Ostwald Process):
The mesh catalyzes the oxidation of ammonia (NH₃) to nitric oxide (NO), a key step in nitric acid manufacturing.
The triple alloy ensures higher efficiency and selectivity compared to single-metal catalytic meshes.
- Emission Control Systems:
In automotive and industrial emissions, the mesh is used to convert toxic gases like CO, NOx, and hydrocarbons into less harmful substances (similar to a catalytic converter).
Used in the production of specialty glass (e.g., fiberglass) to control emissions and improve the efficiency of high-temperature processes.
The mesh facilitates oxidation reactions in the refining process and helps in emission reduction from chemical plants.
Platinum Palladium Rhodium Catalytic Mesh Packaging
Our Platinum Palladium Rhodium Catalytic Mesh is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Specification
|
Material
|
Pt, Pd, Rh
|
|
Composition
|
Pt4Pd3.5Rh
Pt5Pd5Rh
|
|
Density
|
20.3 g/cm3
|
|
Mesh
|
5-80
|
|
Size (mm)
|
φ575, φ810, etc.
side length: 410, 525, etc.
|
|
Wire Diameter
|
0.06-3 mm
|
|
Shape
|
Mesh
|
|
Max Temperature
|
1,400 to 1,700℃
|
Mesh Type
|
Plain Weave Mesh
|
Weft-knitted Mesh
|
|
Warp-knitted Mesh
|
Multilayer Mesh
|
*For more information, please contact us.
