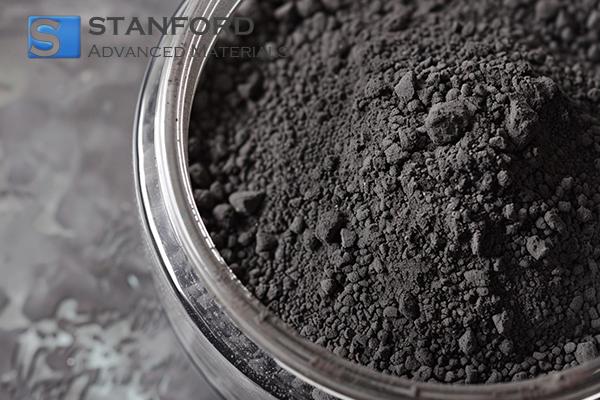

Pre-alloyed Powder FeCuZn (X5-570) Description
Pre-alloyed Powder FeCuZn (X5-570) is manufactured by atomization method. Since each powder particle contains various metal elements that make up the alloy, the composition uniformity of the pre-alloyed powder is quite good. The process stability is strong, and the sintering process range is wide. The unique preparation process gives the powder good formability and can significantly reduce the sintering temperature. The carcass has moderate hardness and high brittleness, which can significantly improve the sharpness and smoothness of the tool and make the tool cut smoothly.
Pre-alloyed Powder FeCuZn (X5-570) Specifications
|
Specification
|
|
Sintering Temperature (℃)
|
800
|
|
Oxygen Content (%)
|
≤0.34
|
|
Carcass Hardness
|
95-100HRB
|
|
Theoretical Density (g/cm3)
|
7.93
|
|
Bulk Density (g/cm3)
|
3.3
|
|
Bending Strength (Mpa)
|
700-800
|
Pre-alloyed Powder FeCuZn (X5-570) Applications
Pre-alloyed FeCuZn Powder (X5-570) significantly enhances diamond tool performance while reducing manufacturing costs. It is ideal for applications such as stone dry slicing, small wall groove saw blades, medium-diameter granite saw blades, large cutter heads, hobs, edge grinding wheels, and more.
Pre-alloyed Powder FeCuZn (X5-570) Packaging
Our Pre-alloyed Powder FeCuZn (X5-570) is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
FAQ: Pre-alloyed Powder
1. What is Pre-alloyed Powder?
Pre-alloyed powder is a type of metal powder in which two or more metals are combined together before the powder form. The metals are alloyed during the production process, and the resulting powder is composed of a uniform mixture of the alloy's components. This powder is typically used in metal injection molding (MIM), additive manufacturing (3D printing), and powder metallurgy processes to create parts with specific material properties.
2. What are the typical applications of Pre-alloyed Powder?
Pre-alloyed powders are used in a wide range of industries and applications, including:
Powder Metallurgy (PM): For manufacturing structural and functional parts like gears, bearings, and automotive components.
Metal Injection Molding (MIM): Used for producing intricate parts for the aerospace, medical, and electronics industries.
Additive Manufacturing (AM): Common in 3D printing of metal parts, such as titanium or stainless steel alloys, for applications in aerospace, automotive, and healthcare sectors. Tooling: In the production of high-performance cutting tools and dies.
Electronic Devices: Used in the fabrication of electronic components, including sensors, connectors, and switches.
3. What are the benefits of using Pre-alloyed Powder?
Uniform Composition: Pre-alloyed powders provide a consistent and homogeneous composition throughout the powder particles, ensuring uniform material properties in the final product.
Enhanced Material Properties: The alloying of metals allows for optimized properties such as strength, hardness, wear resistance, and corrosion resistance, making them suitable for demanding applications.
Reduced Contamination Risk: Since the alloying is done before the powder is made, there is less risk of contamination from individual elements, resulting in higher quality and reliability.
Improved Process Control: Pre-alloyed powders offer better control over the material properties and ensure predictable results during powder metallurgy processes. Ease of Use: These powders simplify the process, as no post-alloying is required, making them more convenient for manufacturers.
