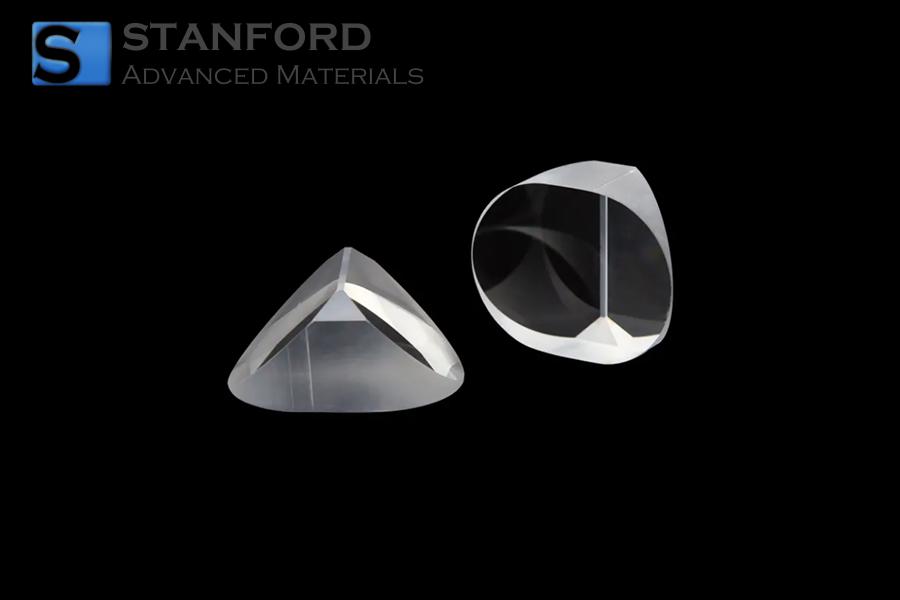

OP509 Corner Cubes Retroreflectors

Catalog No. OP509
Material BK7 Grade A optical glass
Surface Quality 60-40 scratch and dig

Corner Cubes reflect a beam parallel to the incident ray, regardless of the relative orientation of the beam and prism. This reduces setup time for applications in which a single-faced mirror would be an impractical reflector. Our corner cubes function at large angles of incidence, ensuring precision alignment while requiring only minimal adjustment.

Material

BK7 Grade A optical glass

Dimension Tolerance

+0,-0.2mm

Bevel

Prospective bevel

Clear Aperture

>80%

Surface Quality

60-40 scratch and dig

Flatness

l /4 @632.8 nm on big surface;
l /10 @632.8 nm on other surface

Wavefront Distortion

l /2 @632.8

Angle Deviation

180° ±3 arc sec

LATEST RECOMMENDED

OP0504 Penta Prism

OP0504 Penta Prism

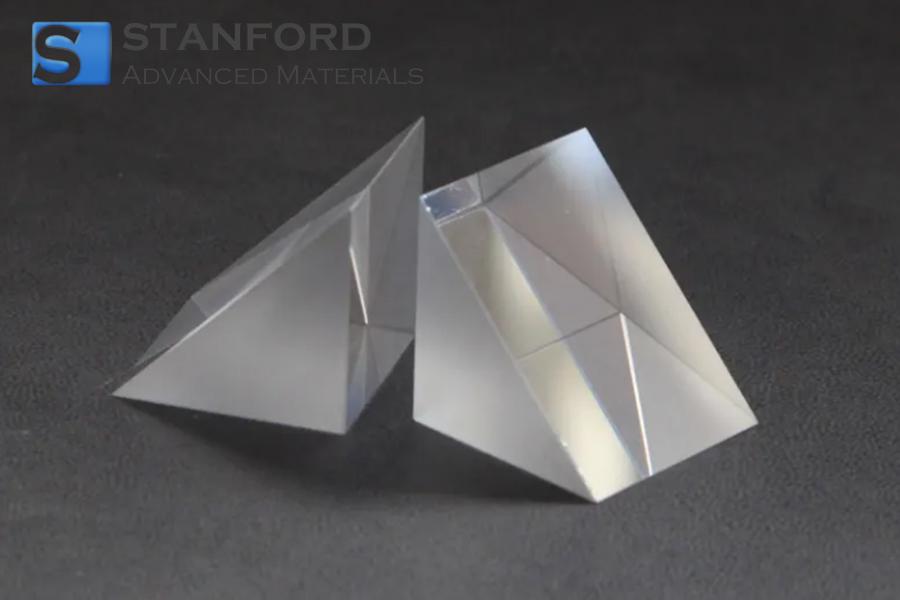

OP0505 Right Angle Prisms
