SD Milling Cutter-AFM45 Description
SD Milling Cutter-AFM45 is one of the square series indexable inserts, which can be used to process steel, cast iron and other materials. In addition, a complete model of the cutter head is provided. The cutter head has three entering angles of 45°, 75° and 90°, which can be used for face milling, shoulder milling, chamfer milling and other processing methods.
SD Milling Cutter-AFM45 Specifications

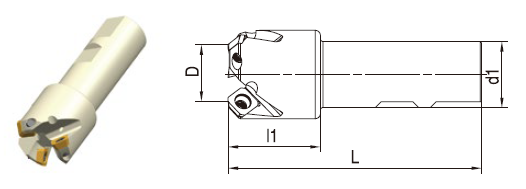

AFM45-SD09

Designation
|
D
|
d1
|
L
|
l1
|
apmax
|
Z
|
AFM45-016-Z02-W16R-SD09-C
|
16
|
16
|
90
|
25
|
5
|
2
|
AFM45-020-Z02-W20R-SD09-C
|
20
|
20
|
110
|
30
|
5
|
2
|
AFM45-025-Z03-W25R-SD09-C
|
25
|
25
|
120
|
30
|
5
|
3
|
AFM45-032-Z03-W32R-SD09-C
|
32
|
32
|
120
|
35
|
5
|
3
|

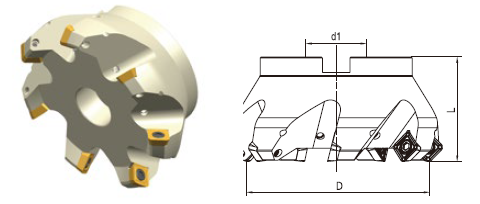

Designation
|
D
|
d1
|
L
|
apmax
|
Z
|
AFM45-032-Z04-A13R-SD09-C
|
32
|
10
|
40
|
5
|
4
|
AFM45-040-Z05-A16R-SD09-C
|
40
|
16
|
40
|
5
|
5
|
AFM45-050-Z05-A22R-SD09-C
|
50
|
22
|
40
|
5
|
5
|
AFM45-050-Z06-A22R-SD09-C
|
50
|
22
|
40
|
5
|
6
|
AFM45-063-Z05-A22R-SD09-C
|
63
|
22
|
40
|
5
|
5
|
AFM45-063-Z07-A22R-SD09-C
|
63
|
22
|
40
|
5
|
7
|
AFM45-080-Z06-A27R-SD09-C
|
80
|
27
|
50
|
5
|
6
|
AFM45-080-Z09-A27R-SD09-C
|
80
|
27
|
50
|
5
|
9
|
AFM45-100-Z07-A32R-SD09-C
|
100
|
32
|
50
|
5
|
7
|
AFM45-100-Z11-A32R-SD09-C
|
100
|
32
|
50
|
5
|
11
|
AFM45-125-Z08-A40R-SD09-C
|
125
|
40
|
63
|
5
|
8
|

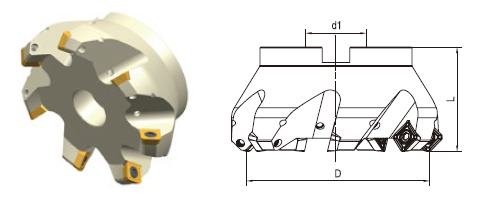

AFM45-SD12

Designation
|
D
|
d1
|
L
|
apmax
|
Z
|
AFM45-050-Z04-A22R-SD12-C
|
50
|
22
|
40
|
7
|
4
|
AFM45-063-Z05-A22R-SD12-C
|
63
|
22
|
40
|
7
|
5
|
AFM45-080-Z06-A27R-SD12-C
|
80
|
27
|
50
|
7
|
6
|
AFM45-100-Z07-A32R-SD12-C
|
100
|
32
|
50
|
7
|
7
|
AFM45-125-Z08-A40R-SD12-C
|
125
|
40
|
63
|
7
|
8
|
SD Milling Cutter-AFM45 Applications
Workpiece Material: P、K、M、S
To process steel, cast iron and other materials.
SD Milling Cutter-AFM45 Packaging
Our SD Milling Cutter-AFM45 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
