SS5064 Stainless Steel Bearing Units SHA200

Catalog No.	SS5064
Material	Stainless Steel
Grade	SHA 200
Grease Type	Food-grade grease

Stainless Steel Bearing Units SHA200 are designed for use in areas where corrosion will occur. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality Stainless Steel Bearing Units SHA200.

INQUIRY

Add to Inquiry List

Description

Specification

Stainless Steel Bearing Units SHA200 Description

Stainless Steel Bearing Units SHA200 are designed for use in areas where corrosion will occur. It has a long service life. The bearing housing has a smooth casting surface manufactured by a proprietary casting method, which helps to prevent the adhesion of impurities for a more hygienic process.

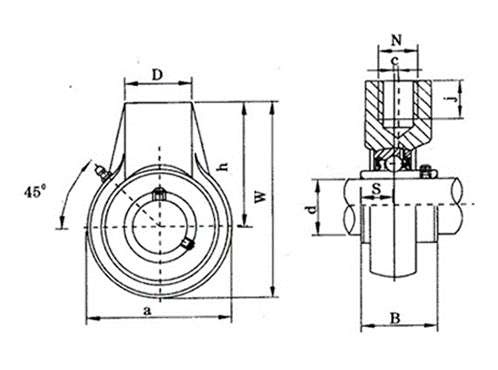

Stainless Steel Bearing Units SHA200 Specifications

Grade	Shaft Dia.		Dimensions（mm）									Weight
Grade	d in	d mm	a	D	w	h	c	j	N	S	B	(kg)
SHA201		12	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA201-8	1/2	-	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA202		15	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA202-10	5/8	-	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA203		17	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA203-11	11/16	-	64	40	96	64	0	19	PF3/4	12.7	31	0.74
SHA204	-	20	64	40	96	64	0	19	PF3/4	12.7	31	0.69
SHA204-12	3/4	-	64	40	96	64	0	19	PF3/4	12.7	31	0.69
SHA205		25	78	40	103	64	0	19	PF3/4	14.3	34.1	1
SHA205-14	7/8	-	78	40	103	64	0	19	PF3/4	14.3	34.1	1
SHA205-15	15/16	-	78	40	103	64	0	19	PF3/4	14.3	34.1	1
SHA205-16	1	-	78	40	103	64	0	19	PF3/4	14.3	34.1	1
SHA206	-	30	78	40	103	64	0	19	PF3/4	15.9	38.1	1
SHA206-17	1-1/16	-	78	40	103	64	0	19	PF3/4	15.9	38.1	1

SHA206-18	1-1/8	-	78	40	103	64	0	19	PF3/4	15.9	38.1	1
SHA206-19	1-3/16	-	78	40	103	64	0	19	PF3/4	15.9	38.1	1
SHA206-20	1-1/4	-	78	40	103	64	0	19	PF3/4	15.9	38.1	1
SHA207		35	92	40	116	70	0	19	PF3/4	17.5	42.9	1.38
SHA207-20	1-1/4	-	92	40	116	70	0	19	PF3/4	17.5	42.9	1.38
SHA207-21	1-5/16	-	92	40	116	70	0	19	PF3/4	17.5	42.9	1.38
SHA207-22	1-3/8	-	92	40	116	70	0	19	PF3/4	17.5	42.9	1.38
SHA207-23	1-7/16	-	92	40	116	70	0	19	PF3/4	17.5	42.9	1.38

For more specifications, please contact us.

Stainless Steel Bearing Units SHA200 Applications

It is suitable for machines in the food, pharmaceutical, and chemical industries.

Stainless Steel Bearing Units SHA200 Packaging

Our Stainless Steel Bearing Units SHA200 are carefully handled during storage and transportation to preserve the quality of our product in its original condition.
