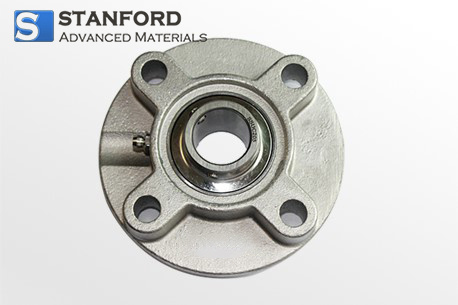

SS5062 Stainless Steel Flanged Cartridge Units

Catalog No.	SS5062
Material	Stainless Steel
Grade	SFCU 200
Grease Type	Food-grade grease

Stainless Steel Flanged Cartridge Units are designed for use in areas where corrosion will occur. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality Stainless Steel Flanged Cartridge Units.

INQUIRY

sc/1687759725-normal-stainless-steel-flanged-cartridge-units.jpg

Description

Specification

LATEST RECOMMENDED

SS1219 316L Stainless Steel Strip

PC1316 Precision Casting (Stainless Steel)

MF1446 Stainless Steel Fiber

SS1973 Stainless Steel 316 Foam (SS316 Foam)

MF2361 Stainless Steel Fiber Sintered Felt

CR2506 202 Stainless Steel Wire Rope

CR2509 304 Stainless Steel Wire Rope

CR2510 308 Stainless Steel Wire Rope

GET A QUOTE

Send us an Inquiry now to find out more Information and the latest prices,thanks!

* Your Name

* Your Email

* Product name

* Your Phone

* Country

United States

Comments

* Check Code

Grade	Shaft Dia.		Dimensions (mm)											Weight
Grade	d in	d mm	a	p	e	i	f	g	j	N	K	E	S	(kg)
SFCU201		12	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU201-8	1/2	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU202		15	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU202-10	5/8	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU203		17	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU203-11	11/16	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU204	-	20	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.52
SFCU204-12	3/4	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.52
SFCU205		25	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-14	7/8	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-15	15/16	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-16	1	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU206	-	30	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93
SFCU206-17	1-1/16	-	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93
SFCU206-18	1-1/8	-	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93

Grade	Shaft Dia.		Dimensions (mm)											Weight
Grade	d in	d mm	a	p	e	i	f	g	j	N	K	E	S	(kg)
SFCU201		12	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU201-8	1/2	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU202		15	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU202-10	5/8	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU203		17	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU203-11	11/16	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.56
SFCU204	-	20	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.52
SFCU204-12	3/4	-	100	78	55.1	10	62	20.5	5	12	7	28.3	12.7	0.52
SFCU205		25	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-14	7/8	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-15	15/16	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU205-16	1	-	115	90	63.6	10	70	21	6	12	7	29.8	14.3	0.64
SFCU206	-	30	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93
SFCU206-17	1-1/16	-	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93
SFCU206-18	1-1/8	-	125	100	70.7	10	80	23	8	12	8	32.2	15.9	0.93
