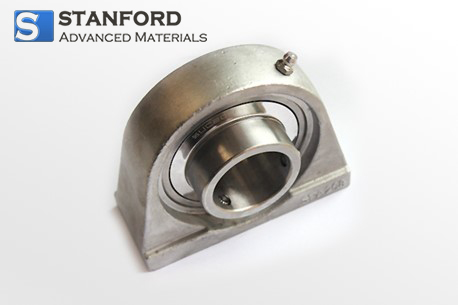

SS5061 Stainless Steel Tapped Base Pillow Block Units

Catalog No.	SS5061
Material	Stainless Steel
Grade	STPU 200
Grease Type	Food-grade grease

Stainless Steel Tapped Base Pillow Block Units have solid base housing construction and a wide inner ring. Stanford Advanced Materials (SAM) has rich experience in manufacturing and supplying high-quality Stainless Steel Tapped Base Pillow Block Units.

INQUIRY

Add to Inquiry List

stainless-steel-tapped-base-pillow-block-units

Description

Specification

Stainless Steel Tapped Base Pillow Block Units Description

Stainless Steel Tapped Base Pillow Block Units are Set Screw Locking. The bearing has solid base housing construction and a wide inner ring. Stainless Steel Tapped Base Pillow Block Units have a relubricate unit with an anti-rotation pin. The bearing has been supplied with water and wash-resistant mobile grease.

The bearing housing has a smooth casting surface manufactured by a proprietary casting method, which helps to prevent the adhesion of impurities for a more hygienic process.

Stainless Steel Tapped Base Pillow Block Units Specifications

Grade	Shaft Diameter		Dimensions (mm)										Weight
Grade	d in	d mm	h	a	e	b	g	w	F	t	S	B	(kg)
STPU201		12	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU201-8	1/2	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU202		15	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU202-10	5/8	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU203		17	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU203-11	11/16	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU204	-	20	30.236.5	76	52	40	11	62	13	M10	12.7	31	0.57
STPU204-12	3/4	-	30.236.5	76	52	40	11	62	13	M10	12.7	31	0.57
STPU205		25	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-14	7/8	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-15	15/16	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-16	1	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU206	-	30	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-17	1-1/16	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-18	1-1/8	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-19	1-3/16	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-20	1-1/4	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU207		35	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-20	1-1/4	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-21	1-5/16	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-22	1-3/8	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-23	1-7/16	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65

For more specifications, please contact us.

Stainless Steel Tapped Base Pillow Block Units Applications

It is suitable for machines in the food, pharmaceutical, and chemical industries.

Stainless Steel Tapped Base Pillow Block Units Packaging

Our Stainless Steel Tapped Base Pillow Block Units are carefully handled during storage and transportation to preserve the quality of our product in its original condition.

Specification

Grade	Shaft Diameter		Dimensions (mm)										Weight
Grade	d in	d mm	h	a	e	b	g	w	F	t	S	B	(kg)
STPU201		12	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU201-8	1/2	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU202		15	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU202-10	5/8	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU203		17	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU203-11	11/16	-	30.2	76	52	40	11	62	13	M10	12.7	31	0.6
STPU204	-	20	30.236.5	76	52	40	11	62	13	M10	12.7	31	0.57
STPU204-12	3/4	-	30.236.5	76	52	40	11	62	13	M10	12.7	31	0.57
STPU205		25	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-14	7/8	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-15	15/16	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU205-16	1	-	42.9	84	56	45	12	72	15	M10	14.3	34.1	0.81
STPU206	-	30	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-17	1-1/16	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-18	1-1/8	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-19	1-3/16	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU206-20	1-1/4	-	47.6	94	66	50	12	84	18	M14	15.9	38.1	1.17
STPU207		35	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-20	1-1/4	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-21	1-5/16	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-22	1-3/8	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
STPU207-23	1-7/16	-	49.2	110	80	55	13	95	20	M14	17.5	42.9	1.65
