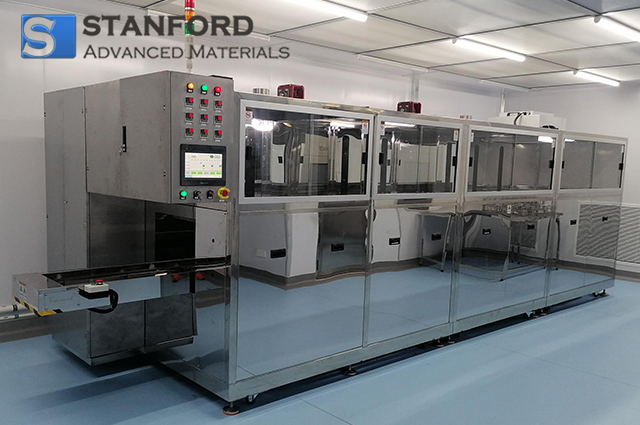

Automatic Ultrasonic Cleaning Machine for Quartz Glass Description
Automatic Ultrasonic Cleaning Machine for Quartz Glass is an ultrasonic cleaning equipment specially used for cleaning quartz glass. Ultrapure water and pure water are used as cleaning media. After multiple ultrasonic cleaning, dehydration and drying processes, high cleanliness cleaning requirements can be achieved.
Automatic Ultrasonic Cleaning Machine for Quartz Glass Specifications
Overall Dimensions (mm)
|
6300*1800*2200
|
Inner Tank Size (mm)
|
380*500*300
|
Supply Voltage
|
380V 50Hz
|
Ultrasonic Power
|
1200W/tank
|
Frequency (kHz)
|
40
|
Cleaning Temperature
|
Room Temp. to 110℃
|
Cleaning Media
|
Water
|
Heating Power
|
3000W
|
Drying Power
|
6000W
|
Drying Temperature
|
Room Temp. to 120℃
|
*For more specifications of the products, please Contact Us.
Automatic Ultrasonic Cleaning Machine for Quartz Glass Applications
- Optics and Photonics: Quartz glass components are widely used in optical and photonic devices such as lenses, prisms, windows, and optical fibers.
- Semiconductor Manufacturing: The cleaning machine helps in removing particulate matter, residues, and contaminants from quartz glass surfaces, ensuring the integrity and cleanliness of semiconductor fabrication processes.
- Laboratory and Scientific Applications: The cleaning machine facilitates the thorough cleaning of quartz glass laboratory equipment, removing chemical residues, stains, and contaminants, and ensuring accurate and reliable experimental results.
- Medical and Pharmaceutical Industries: The cleaning machine helps in maintaining the cleanliness and sterility of quartz glass surfaces, ensuring compliance with regulatory standards and preventing contamination of medical and pharmaceutical products.
- Solar Energy: The cleaning machine assists in removing dust, dirt, and residues from quartz glass surfaces, thereby enhancing the efficiency and performance of solar energy systems.
Automatic Ultrasonic Cleaning Machine for Quartz Glass Packaging
Our Automatic Ultrasonic Cleaning Machine for Quartz Glass is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
Specification
Overall Dimensions (mm)
|
6300*1800*2200
|
Inner Tank Size (mm)
|
380*500*300
|
Supply Voltage
|
380V 50Hz
|
Ultrasonic Power
|
1200W/tank
|
Frequency (kHz)
|
40
|
Cleaning Temperature
|
Room Temp. to 110℃
|
Cleaning Media
|
Water
|
Heating Power
|
3000W
|
Drying Power
|
6000W
|
Drying Temperature
|
Room Temp. to 120℃
|
*For more specifications of the products, please Contact Us.
