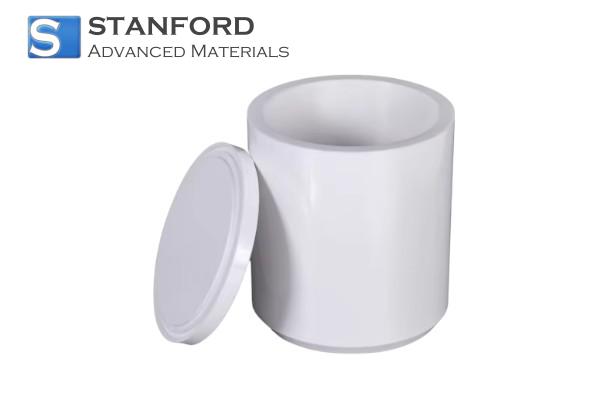

YSZ1164 250mL Yttria Stabilized Zirconia Jar with Lid

Catalog No. YSZ1164
Purity 94.7% ZrO2 + 5.2% Y2O3
Capacity 250mL
Price $899.00

Stanford Advanced Materials is a trusted supplier and manufacturer of high quality Yttria Stabilized Zirconia Jar with Lid for a wide range of industrial uses. We provide regular grinding jars with different capacities of 50mL, 100mL, 250mL, 500mL, 1000mL, etc.

Related products: Zirconia (YSZ) Grinding Media, Zirconia Mortar and Pestle, Zirconia (YSZ ) Tube, Zirconia Crucible (ZrO2 Crucible).

250mL Yttria Stabilized Zirconia Jar with Lid Description:

Zirconia ceramics performance:
Density: 6.05 g/cm3
Water absorption: <0.05%
Firing temperature: 1550 °C
Hardness: 1350 HV
Bending strength: 950 MPa
Compression strength: 25000 MPa
Breaking tenacity: 6-8 Mpa•m1/2
Hot expansion coefficient: 9.5x10-6 /°C

Other names for Yttria Stabilized Zirconia Jar: Yttria Stabilized Zirconia Grinding Jar (YSZ Grinding Jar), Zirconia Jar and Zirconium Oxide Jar.

Advantages of Yttria Stabilized Zirconia Grinding Jar and Grinding Media Include:

Zirconia Grinding Jar Zirconia Grinding Jar Zirconia Grinding Jar

250mL Yttria Stabilized Zirconia Jar with Lid Specifications:



TYPE-MQ

TYPE-GT

Capacity

250ml

250ml

Outer Diameter

94mm

91mm

Height

82mm

78mm

Wall Thickness

8mm

8mm

Lid Thickness

7mm

7mm

The above dimensions are for your reference. Contact us for precise specifications or tailor-made requests.

*Grinding Ball Recommendation: When you use 250mL YSZ jar, 280pcs of Dia. 5mm balls or 40pcs of Dia. 10mm balls are recommended.

250mL Yttria Stabilized Zirconia Jar with Lid Applications:


250mL Yttria Stabilized Zirconia Jar with Lid Packaging:

SAM’s Zirconia grinding jars and YSZ grinding jars are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Material Safety Data Sheet (MSDS) for your reference!
