100mL Yttria Stabilized Zirconia Jar with Lid Maximize

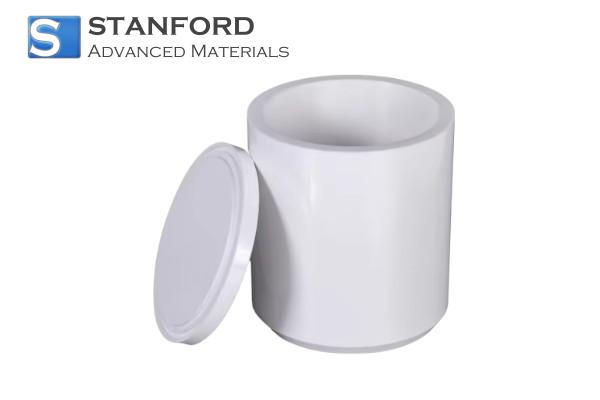

100mL Yttria Stabilized Zirconia Jar with Lid

Catalog No.YSZ-GJ-100
Purity94.7% ZrO2 + 5.2% Y2O3
Capacity100mL
Price$549.00

Stanford Advanced Materials is a trusted supplier and manufacturer of high quality Yttria Stabilized Zirconia Jar with Lid for a wide range of industrial uses. We provide regular grinding jars with different capacities of 50mL, 100mL, 250mL, 500mL, 1000mL, etc.

Related products: Zirconia (YSZ) Grinding Media, Zirconia Mortar and Pestle, Zirconia (YSZ ) Tube, Zirconia Crucible (ZrO2 Crucible).

More details

Description:
Zirconia ceramics performance:
Density: 6.05 g/cm3
Water absorption: <0.05%
Firing temperature: 1550 °C
Hardness: 1350 HV
Bending strength: 950 MPa
Compression strength: 25000 MPa
Breaking tenacity: 6-8 Mpa•m1/2
Hot expansion coefficient: 9.5x10-6 /°C

Other names for Yttria Stabilized Zirconia Jar: Yttria Stabilized Zirconia Grinding Jar (YSZ Grinding Jar), Zirconia Jar and Zirconium Oxide Jar.

Advantages of Yttria Stabilized Zirconia Grinding Jar and Grinding Media Include:

  • High density
  • High hardness and toughness, 60 times the hardness of regular steel
  • High thermal expansion
  • Low thermal conductivity
  • Impact resistance
  • High corrosion and wear resistance

Zirconia Grinding Jar Zirconia Grinding Jar Zirconia Grinding Jar

Specifications:



TYPE-MQ

TYPE-GT

Capacity

100ml

100ml

Outer Diameter

63mm

68mm

Height

63mm

60mm

Wall Thickness

7mm

7mm

Lid Thickness

7mm

7mm

The above dimensions are for your reference. Contact us for precise specifications or tailor-made requests.

*Grinding Ball Recommendation: When you use 100mL YSZ jar, 100pcs of Dia. 5mm balls or 16pcs of Dia. 10mm balls are recommended.

Applications:

  • Yttria Stabilized Zirconia / YSZ grinding jars are used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, ceramics and selective laser sintering.
  • Zirconia jars and Zirconia balls are strong and have good abrasion resistance, which prevents mixing with other impurities while ball mill grinding.


Packaging:
SAM’s Zirconia grinding jars and YSZ grinding jars are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.

Material Safety Data Sheet (MSDS) for your reference!



Send us an inquiry now to find out more information and the latest prices,thanks!

Please include item quantity, size and purity.
